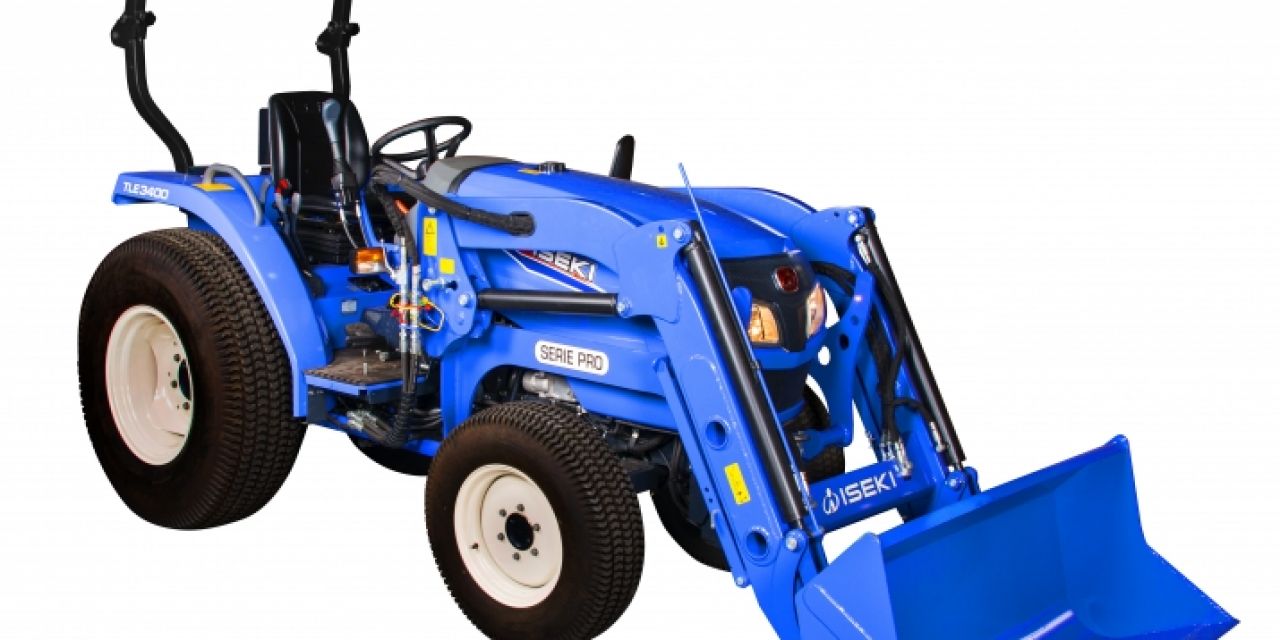

TLE3400  38hp

TLE3400 38hp

It is supplied with agricultural or turf tyres as standard and there is an optional front loader available.



TLE 3400 is equipped with:

• Hydrostatic transmission: 3 groups

• Water-cooled 3-cylinder diesel engine, 39pk, 1498 cc

• Deluxe suspension seat

• Four-wheel drive

• point hitch behind

• Hydrostatic steering

• Safety bar (foldable)

• PTO rear 540 rpm

• Towing hooks front and rear

• Differential lock

• 1 dw valve behind

• Electronic PTO

Engine

Manufacturer
Iseki
Model
E3CD
Displacement
1.498
No. of Cylinders
3
Maximum Torque
112/1600 (11.4 kgf.m/1600rpm)
Rated Speed
2600
Fuel Tank Capacity (L)
43
Engine output
Gross (kW{PS}) 29 (39)
Net (kW{PS}) 27.9 (38)
Regulation of emission
Stage 3A
Combustion chamber
Swirl chamber

HST Pedal
Type = See-saw pedal
Auto cruise -
Transmission
Main = HST
Sub = 3

Size Front
7-16 212/80D-15
Size Rear
11.2-24 355/80D-20

PTO

Mid PTO
-
Rear PTO
Number of gears = 1
Speed (rpm)= 540
Clutch
Independent
Front PTO
Local arrangement

3P Linkage
3P linkage Category 1
Lift Capacity - Link End
1000
Position Control
Std
Pump Capacity Main
26.3 / 2860
Auxiliary Valves
Std x1 (Opt x2)
Kgf
@ 24” behind 810
Draft control
-

Overall Length
AG Tyres= 3075mm
Turf Tyres= 3075mm
Overall Width
Ag Tyres = 1385
Turf Tyres = 1490
Overall Height
Ag Tyres = 2630
Turf Tyres = 2625
Weight
Ag Tyres = 1260
Turf Tyres = 1280
Ground Clearance
Ag Tyres = 265
Turf Tyres = 260
Wheelbase
1675

Battery
12.55 (80D26R):CCA 582 ccA

Type
Rear foldable

Diff-lock
Pedal (left)
Brake
Wet disc
Brake pedal type
Pedal (right)
Parking brake
Lever

Type
4WD / 2WD
Steering
Hydraulic power steering
Tilt steering
-

3P

Rear hitch
Clevis drawbar

Floor type
Semi-flat
Floor mat
Std
Rearview mirror
Std
Seat
Std
