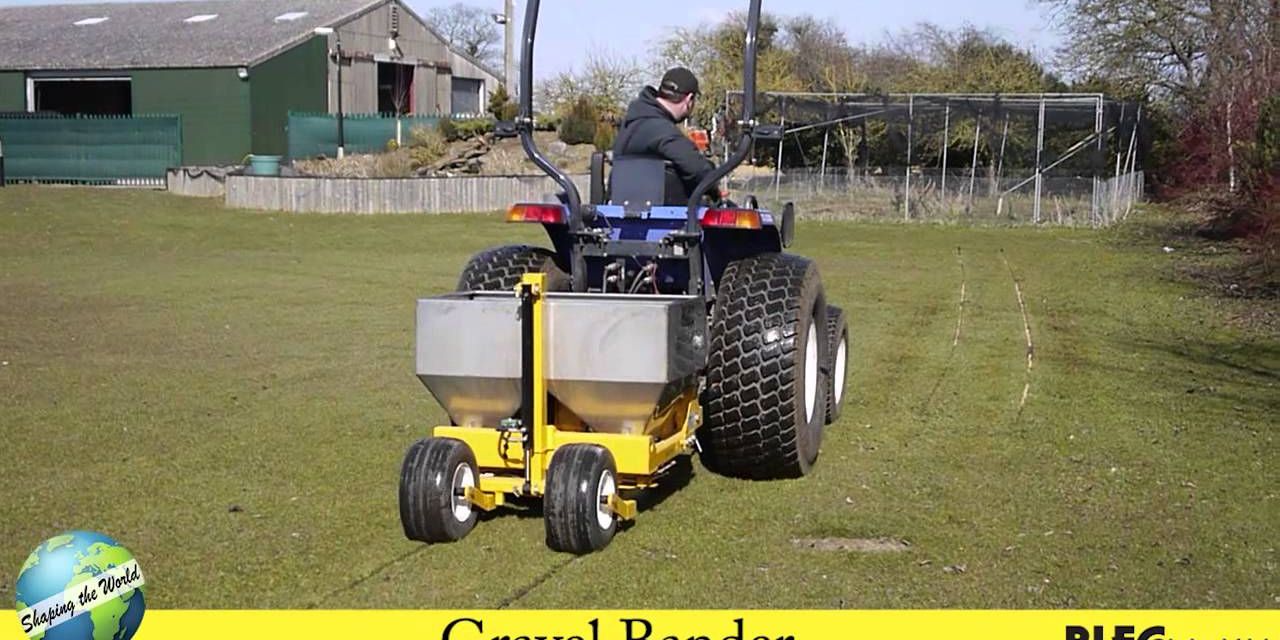

Gravel Bander

Gravel Bander

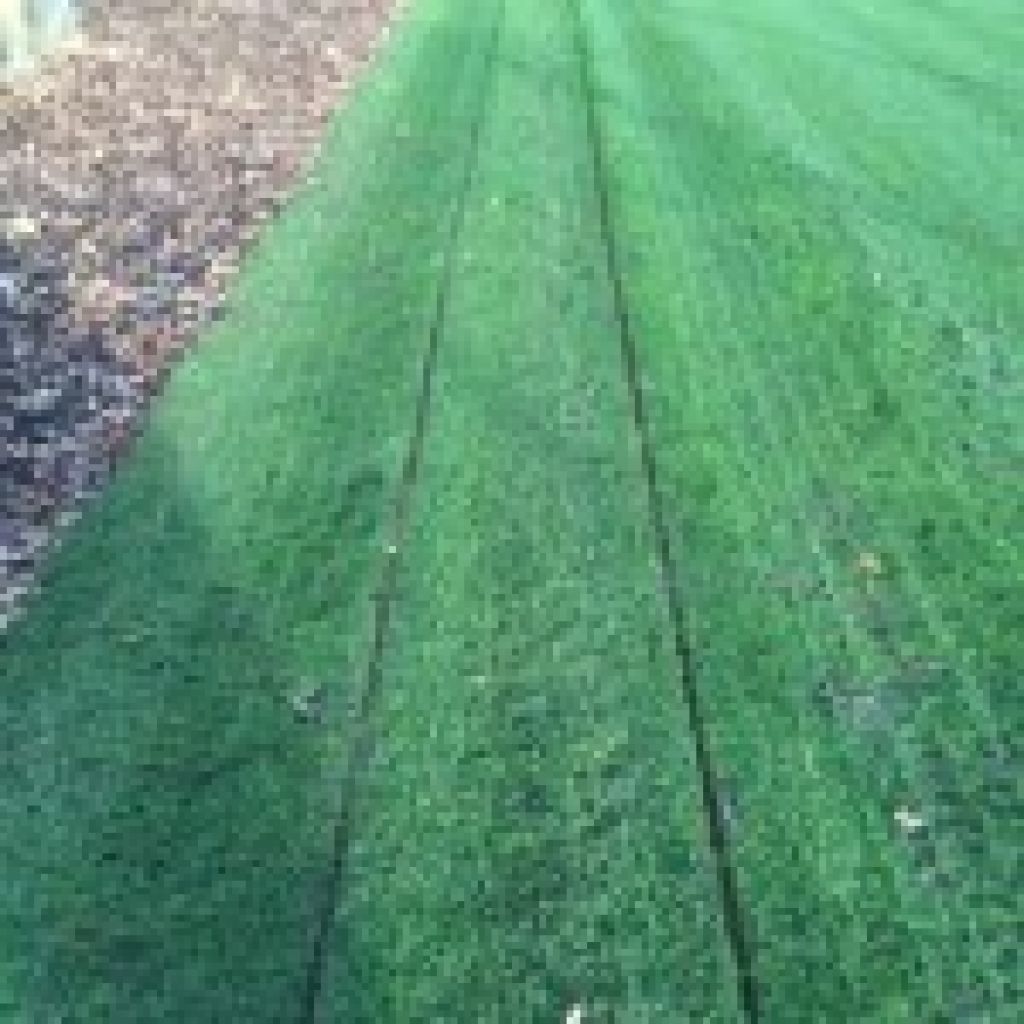

The unique PTO driven Vibra leg system creates a smooth cutting action allowing both legs to penetrate the ground down to 25cm and also backfilling the gravel or dry sand easily. Leg spacing is 60cm with a band width of either 20mm or 25mm. The rear steel wheels firm up the trenches and control the working depth by a screw adjuster.

  • Vibrating twin leg system
  • PTO driven vibras gearbox for long life
  • Stainless steel Hopper (two sizes available)
  • Hydraulic hopper shut off/on to each leg
  • Depth control by rear steel wheels
  • Drainage material max depth 25cm (optional 30cm)
  • Pre-turf slitting by front discs
  • To suit compact and mid range tractors
  • 3 point linkage CAT 1
  • Optional hydraulic lift kit
Model Weight Leg Spacing Leg Vibration Hopper Standard Max working width Pre Turf slitting Depth Control Working width Tractor hp MRRP
BGB600 405kg 60cm (24") 540 PTO driven gearbox 350L (optional 830L) Standard 25cm (optional legs 30cm) Front disc assy adjustable for depth Rear twin wheels screw adjuster (optional hydraulic lift cylinder) 30-60  POA
Code: 8432 2950
